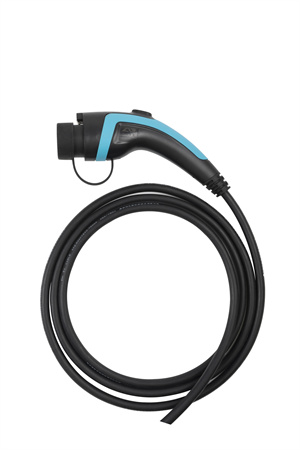

GB/T EV DC Charging Cable

  • Conform to the provisions and requirements of <Connection set for conductive charging of electric vehicles> GB/T 20234.2-2015.
  • Have a electromagnetic locking device, have functions of signal feedback.
  • Have one or two PTC (PT1000) thermistor (can match with NTC or Temperature control switch) .

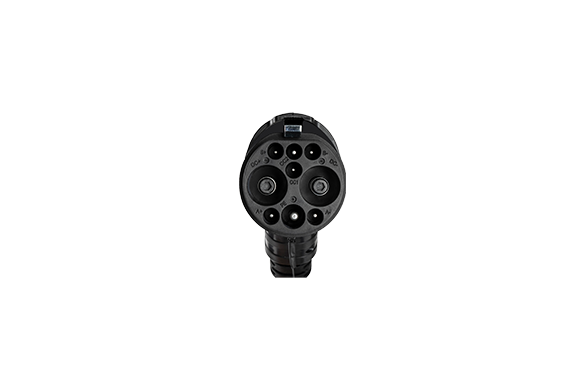

  • The head of pins using safety insulation design to prevent direct contact with the hand.
  • Excellent protection performance, prodection grade achieved IP55 (working condition).
  • Applied double color coating technology, personalized custom a variety of colors.


Mechanical Life

Mechanical life: no-load plug>10000times

Impact of external force: can afford 1m drop and 2T vehicle run over pressure

Applied Material

Shell material: thermoplastics, TPE

Retardant grade UL94-V0.

Pin: Copper alloy, silver + top of the thermoplastic

Environmental performance

Operatihg temperature: – 30°C ~+50°C

Electrical Performance

The rated current: 32A, 40A, 63A, 80A, 125A, 200A, 250A

The rated voltage: 750V

Insulation resistance: >2000MQΩ(DC1000V)

Pins temperature rise:<50K

Withstand voltage: 4500V(DC+/DC-/PE)

Contact impedance: 0.5mΩMax
